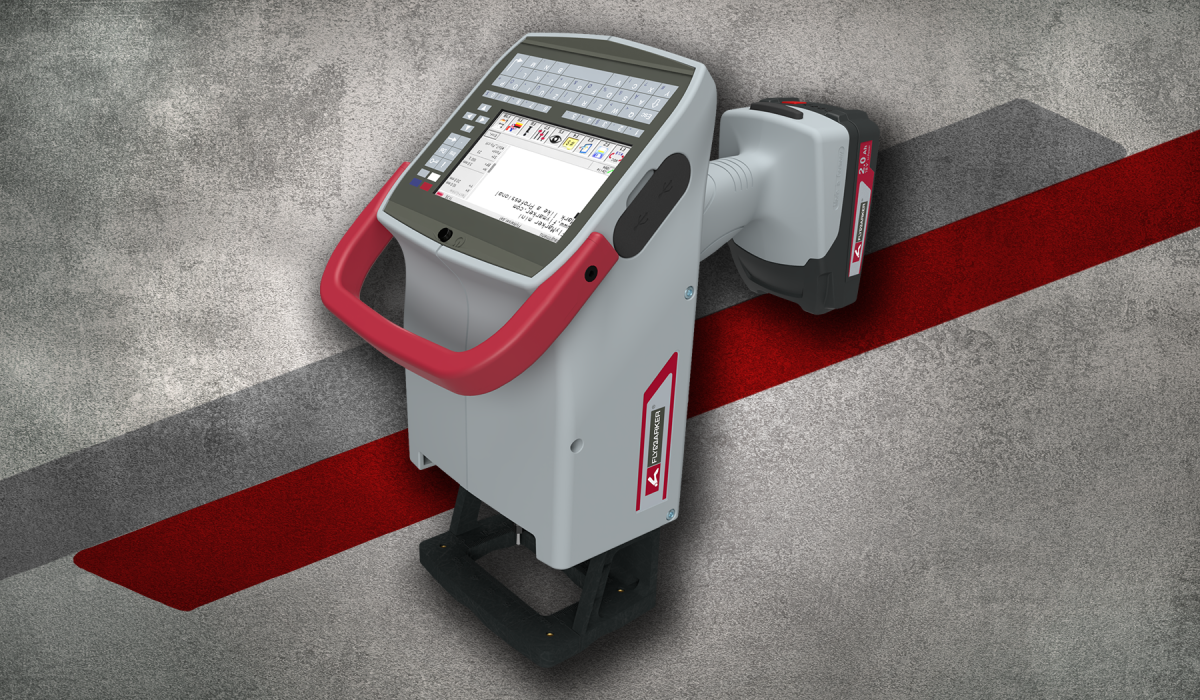

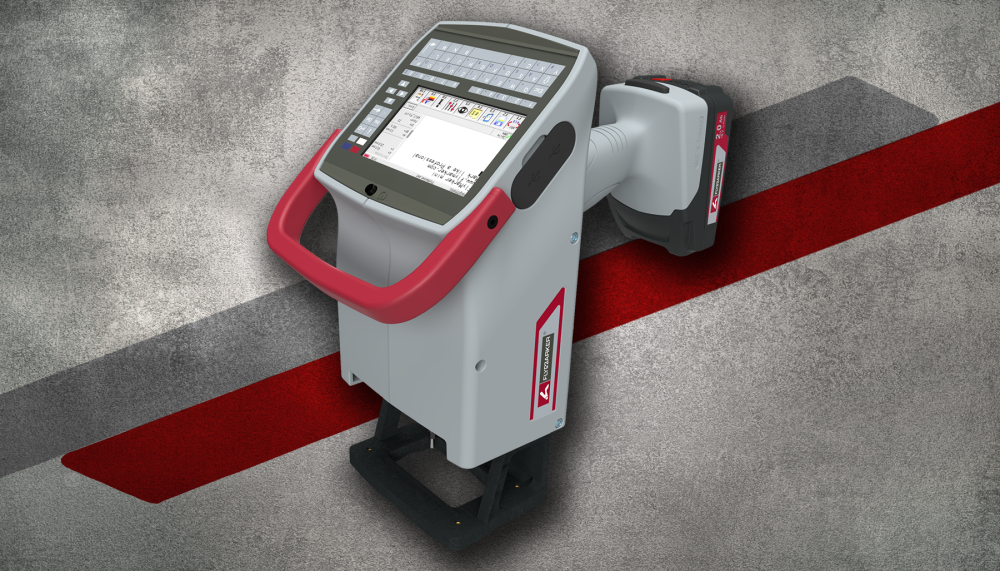

FlyMarker mini 65/30 4,3" touch NEW

Data Matrix CodeElectro-magneticHandheld

Perfect marking per fingertip

Modern design meets functionality - Mobile dot peen marker for permanent and flexible marking on almost all materials!

from 3.990,- €

Product details

New operating concept

Our bestseller among the battery-operated handheld marking systems now with touch user interface. With the new operating concept of the FlyMarker mini 65/30 4.3" touch, we would like to offer our customers a modern upgrade. Of course, even with a new look, it has the same features that make the FlyMarker mini 65/30 a top performer - 100% mobile, lightweight, flexible and guarantees fast, permanent and tamper-proof marking on almost any surface!


  • Simple operation via touch user interface
  • Latest processor technology for maximum system performance
  • High-resolution large 4.3" color display with clear and intuitive operating software


  • Easy handling of the battery-operated dot peen marker thanks to a device weight of only 2.4 kg (incl. battery)
  • Perfectly adapted device design for effortless 1- or 2-hand operation
  • Flexibly adjustable impact strengths, perfectly adapted to the material and the desired marking depth


  • 2 powerful 18V lithium-ion batteries (standard scope of delivery) allow mobile marking at any time
  • ALL-IN-ONE system with integrated control unit
  • Wireless marking of immobile and voluminous workpieces or components that are difficult to access


Comparison chart of all FlyMarker mini products



Marking area (x/y): 65 x 30 mm

Available character heights: 1,0 to 29,9 mm

Fonts: Medium spaced lettering similar to DIN 1451 in single dot characters (size 5 x 7 or 9 x 13)

Drive of the marking pin: Electromagnetic

Available characters: Numbers 0 - 9, capital letters / small letters A - Z; a-zvarious punctuation marks. , / etc.

Interface: USB-A, USB-B, Ethernet

Height tolerance compensation: Up to max. 5 mm (constant marking depth also on uneven surfaces)

Weight: 2,4 kg incl. battery

Battery capacity: 2,0 Ah 18V (Lithium-Ion) / 5,2 Ah 18V (optional)

Marking force: 30 possible force settings(constant impact performance through the complete battery runtime)

More product pictures and product variants

Transport case (standard scope of delivery)

Transport case (standard scope of delivery)

FlyMarker mini 65/30 with integr. barcode scanner

FlyMarker mini 65/30 with integr. barcode scanner

FlyMarker mini 65/30 with column frame

FlyMarker mini 65/30 with column frame
